CMD Flash list of cars - BDM

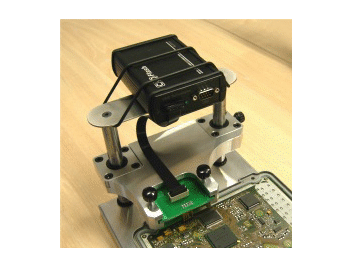

The CMDFlash tool is a reader/programmer BDM,EOBD K-LINE,EOBD CAN-BUS,EOBD PWM for all the new generation ECUs.
With BDM you need to unplug the ECU from the vehicle, open and connect it to our tool using a connector available on every EDC16,Marelli,Siemens and Delphi ECU.
This Tool can be sold as a plug-in of our Map3d software or stand-alone.
The Software allow you to read/write the Eprom (29bl802 / M58), the internal firmware and the serial e2prom containing the car's codes.
Checksum correction algoritm is automatic for all the ECU families, this mean you don't have to care about checksums calculations .
With our tool is possible to read all the ecu's eprom, and after a bad map tuning, a system hung or an interrupted write operation
it is always possible to restart the program operation to restore the ECU and start the car.
All the ECU data can be stored in a single file with additional info like brand, model, plague, chassis number, data, note, customer .....
with search facilities and information directly integrated in microsoft windows explorer.
























List of ECUS - BDM

  • BOSCH EDC16C8 ALFA ROMEO/FIAT/LANCIA
  • BOSCH EDC16C4 EDC16U1 VAG
  • BOSCH EDC16C1 EDC16C31 BMW
  • BOSCH EDC16C2 MERCEDES
  • BOSCH EDC16C3 PEUGEOT/CITROEN
  • BOSCH EDC16C3 RENAULT/NISSAN/SUZUKI
  • BOSCH EDC7C1 EDC7C2 EDC7C3
  • MARELLI MJD6 FIAT
  • MARELLI MJD6 SUZUKI/OPEL
  • SIEMENS MSV70 MSS70 BMW
  • BOSCH EDC16C3 FORD
  • BOSCH EDC16C8 IVECO
  • MOTOROLA SCANIA HPI 420R/470R/500R/580R
  • SIEMENS SID202 SID206 SID803 PSA
  • MOTOROLA MERCURY MARINE PCMXXX/ECMXXX
  • BOSCH EDC16C2 EDC16C7 HONDA
  • BOSCH ME9 BMW
  • BOSCH EDC16U31 EDC16CP34 VAG
  • SIEMENS MS45 BMW
  • DELPHI FORD/JAGUAR
  • DELPHI SSANGYONG/TATA/CITROEN/SUZUKI
  • PERKINS CAT/LANDINI
  • BOSCH EDC16C9 OPEL/SAAB/CHEVROLET
  • BOSCH MED9.5 VAG
  • BOSCH EDC16C35 BMW
  • BOSCH EDC16C34 EDC16CP39 PSA/KIA/HYUNDAI
  • BOSCH ME9.0 VOLVO/FORD
  • BOSCH EDC16CP31 EDC16C32 EDC16C31 MB/SMART
  • BOSCH EDC16C10 TOYOTA
  • BOSCH MED9.1 MED9.1.2 VAG LAMBORGHINI
  • SIEMENS SID201 SID204 JAGUAR/PEUGEOT/LANDROVER
  • BOSCH ME9.7 MERCEDES
  • BOSCH EDC16U34 VAG
  • SIEMENS EMS2000 HYUNDAI
  • SIEMENS MSS65 MSS60 BMW
  • SIEMENS VAG PPD1.X
  • DELPHI 4JJ1 4JK1 ISUZU
  • BOSCH BMSK BMW MOTORCYCLE
  • BOSCH EDC16C39 ALFA ROMEO/FIAT/LANCIA/IVECO
  • SIEMENS SID301 PIEZO RENAULT
  • MARELLI MJD6 FIAT/OPEL
  • SIEMENS SIM266 MERCEDES
  • BOSCH ME9.2 BMW MED9.6.1 FERRARI
  • BOSCH EDC16C31 VOLVO
  • BOSCH EDC16C39 SAAB/OPEL
  • BOSCH EDC16C8 MAHINDRA
  • BOSCH EDC16U31 EDC16C31 DODGE/MITSUBISHI/JEEP
  • BOSCH EDC16C39 SUZUKI
  • CUMMINS CM848
  • BOSCH EDC16CP33 EDC16C36 RENAULT
  • BOSCH EDC16C39 GM DAEWOO GW
  • DELPHI DCM3.2 SSANGYONG/KIA/MB CRD.11 EURO4
  • BOSCH EDC7UC31 EDC7C32 EDC7U1
  • SIEMENS SIM6.X VAG
  • BOSCH EDC16C41 NISSAN
  • DELPHI DCMI DAF
  • DEERE X30 TIR3
  • TRW EMS2 VOLVO MPC565
  • BOSCH EDC16C39 CASE EDC16UC40 DEUTZ
  • BOSCH ME9.6 OPEL
  • CUMMINS INDUSTRIAL VEHICLES
  • SIEMENS SIM90E SID902
