VOLTAGE Glitch HELP



ECU Positioning & Frame Setup

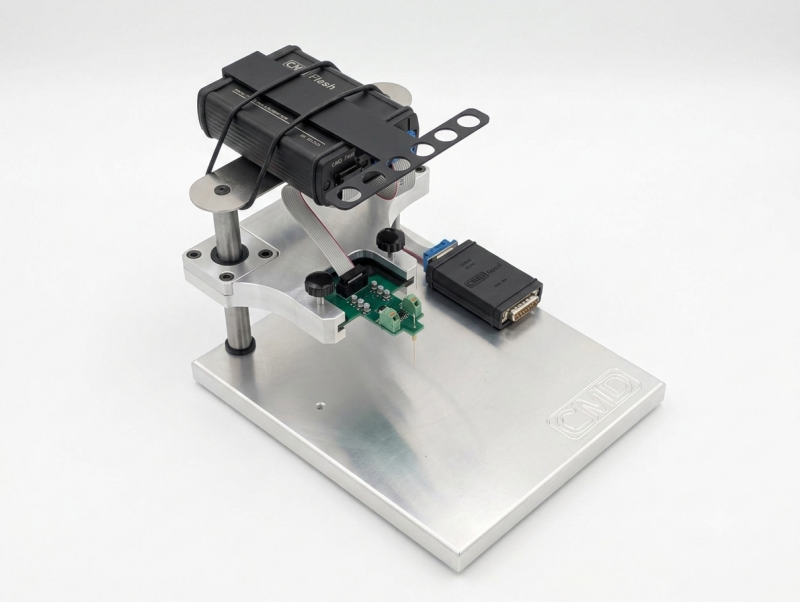

1. Frame & Mount Assembly

  • Positioning Frame: Use any standard positioning frame previously utilized for BDM (e.g., EDC16 protocols) equipped with a standard probe attachment. (If needed, contact the sales department to purchase one).

  • Voltage Glitch RST Plastic Support: Secure the dedicated plastic holder (not included in the standard kit) to the frame.

    💡 Note: You can purchase the support from the official shop, order it through sales, or download the free 3D-printing project file to print it locally with no shipping costs or delay.   Voltage Glitch RST HOLDER (3D PRINTER .stl)











2. Connections & Wiring

  • ECU Power & Boot: Connect the CmdFlash BOOT Interface and the main power supply leads directly to the front connector of the ECU.

  • Glitch Probe: Connect the voltage glitch probe to the CMDFlash BDM port using the 10-pin flat cable..

  • Resistor: Remove the resistor as shown in the dedicated HELP manual (remember to bridge it back or re-solder it when finished; since it's a 0-ohm resistor, a simple solder bridge across the pads will work fine if you lose it).
  • Reset Pin Connection (Optional): Connect the auxiliary probe tip to the RST pin as indicated in the Help manual (optional, but strongly recommended for higher success rates). The contact tip to be routed to the reset pad must be connected to the spring connector on the glitch board marked with RST. Do NOT use the Reset line from the bench wiring.



3. Software Execution

  1. Identification & Unlock: Launch the identification and unlock procedures using the standard buttons inside the CmdFlash application





Safety Precautions & Operating Recommendations

To ensure reliable performance, prevent hardware damage, and avoid bricking control units during the unlock sequence, strictly adhere to the following guideli

1. Power Supply & UPS Recommendation

  • CmdFlash Power Requirements: Likewise, powering the CmdFlash tool must be done exclusively with the official power supply as detailed in the CmdFlash Help documentation. Do not use third-party or generic power supplies, as voltage ripple can disrupt precision timing.

  • Uninterruptible Power Supply (UPS) Mandatory Recommendation: It is strongly recommended to connect the entire setup (PC, CmdFlash) to a reliable UPS (Uninterruptible Power Supply).

    ⚠️ Warning: If power drops or fluctuates while CmdFlash is updating the ECU bootloader to apply the security patch, the processor will suffer an incomplete flash write, rendering the ECU permanently unbootable ("bricked").
