BOSCH MEDC17 BENCH MODE Cable

 Bill of Material

Bill of material res

1 Universal BOOT Cable provided with CMDFlash Boot Kit
50cm. 10 wire ribbon cable
1 Ribbon cable connector 2x5 pin
1 cable tie
2 crimp terminals
heat shrink tubing



 Step 1 - Crimp the connector

Step1 res



 Step 2 - Assemble CMDFlash BOOT and cables as follow and tighten with cable tie

Step 2 res

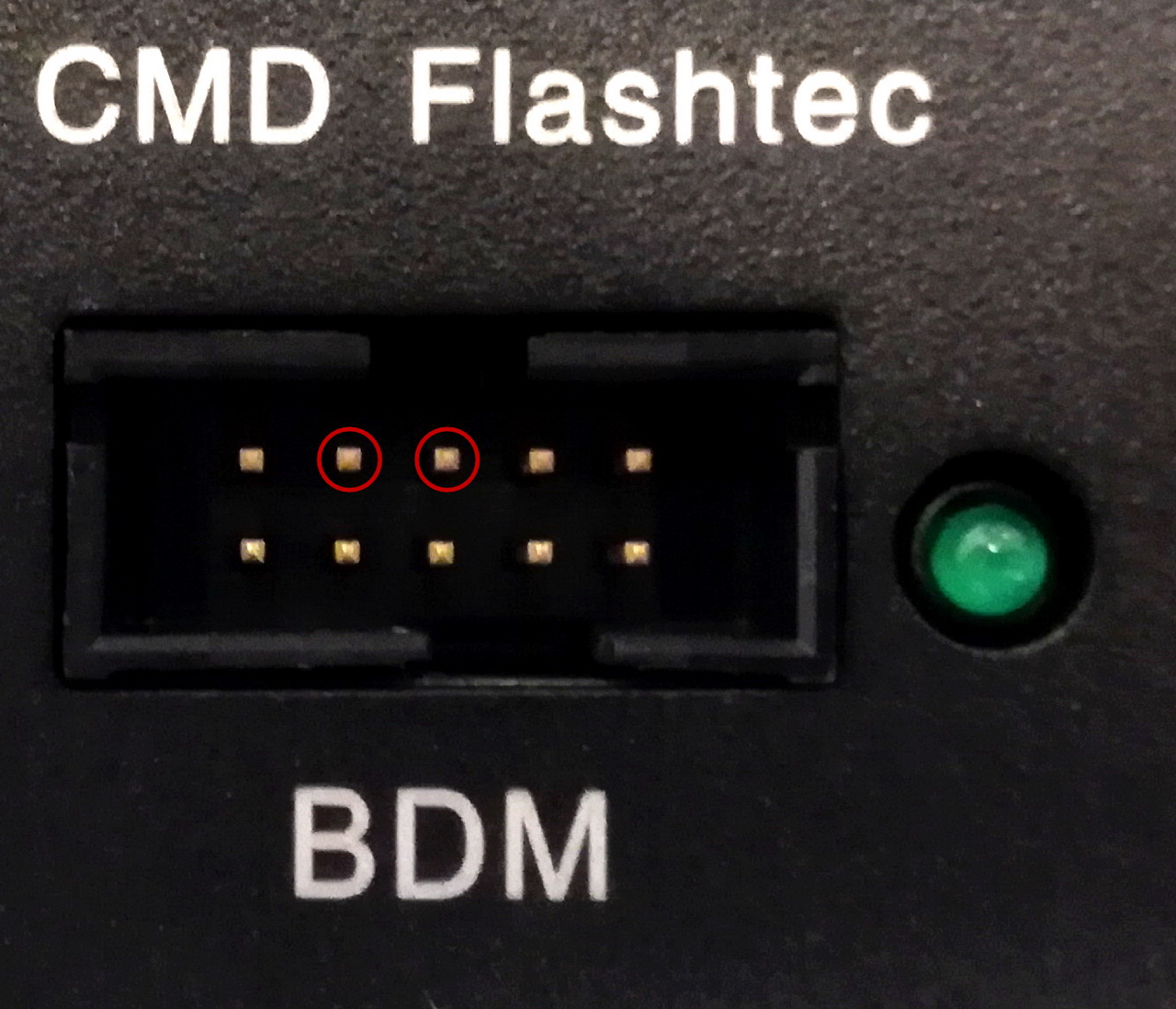

 Step 3 - Cut wires 1,2,3,4,6,8,9,10 DO NOT CUT wires 5 and 7

Step 3 res



 Step 4 - Tape the wires

Step 4 res

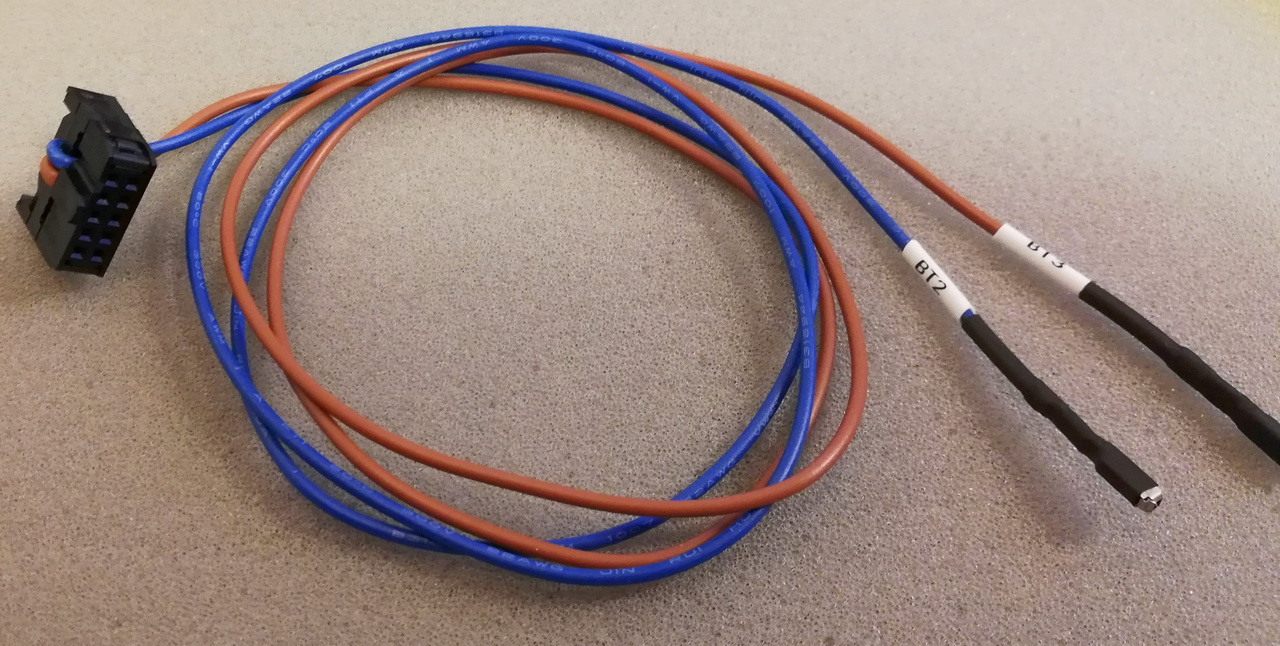

 Step 5 - Crimp and label the wires 5 and 7, order is not important

Step 5 res
